Bonfiglioli 309 Series Planetary Gear Reducer

The best replacement of Bonfiglioli 309 gearbox.

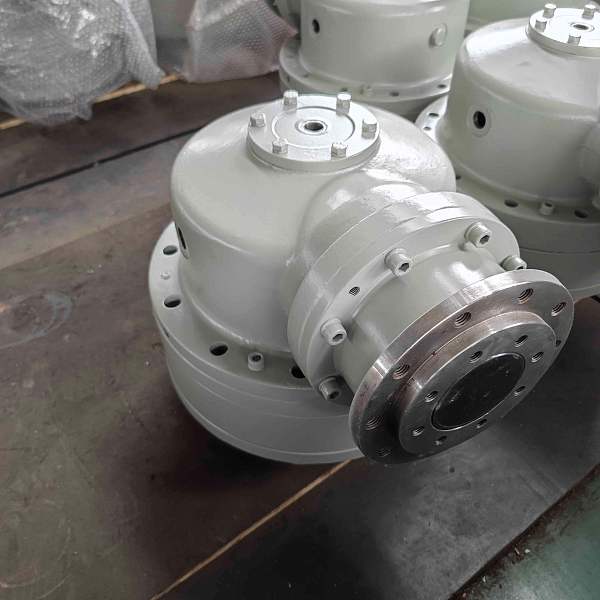

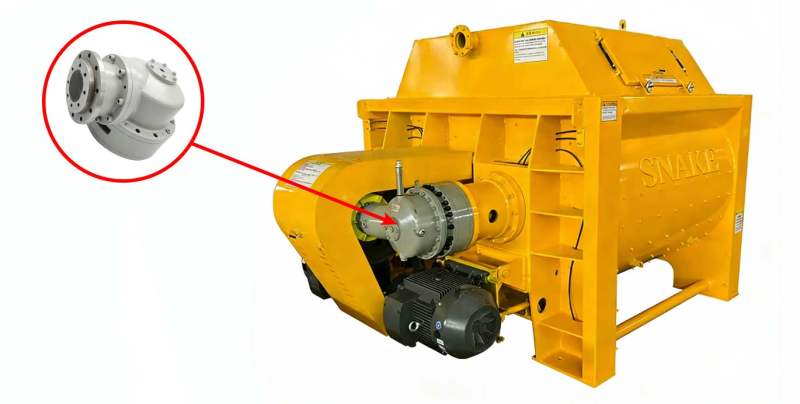

This Planetary Gearboxe is for Twin Shaft Concrete Mixers of 1to 2cbm.

 SNAKE

R309 Series Planetary Gear Reducer

Technical Specifications

Bonfiglioli 309 Series Planetary Gear Reducer – Technical Specifications

(Typical parameters for concrete mixer application, e.g., 309R2 / 309L3)

Parameter

Metric Value

Imperial Value (if applicable)

Model Series

309 (300M Series)

-

Max. Output Torque

16,000 Nm

141,600 lb-in

Nominal Output Torque

11,300–12,800 Nm

100,000–113,300 lb-in

Speed Ratio Range

28 / 32.6 (standard for mixer)

-

Max. Input Speed

2,500 rpm

-

Rated Input Power

30–45 kW

40–60 hp

Transmission Efficiency

96–98%

-

Thermal Capacity

~12–20 kW

~16–27 hp


Inquiry or Consult

SNAKE Planetary Gearbox complies with EU standard

SNAKE produced gearbox by our own heat treatment furnace.All of our machines are from Germany to ensure the most tiny tolerance.

  • 1
  • 2
  • 3
GET MORE INFORMATION

 SNAKE

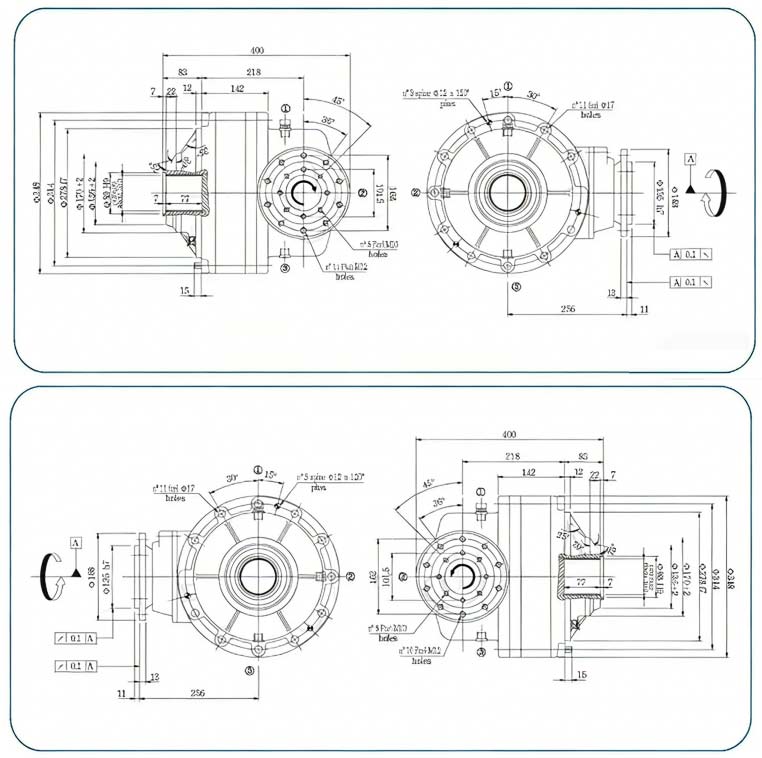

Mechanical & Installation Features

Characteristics

  • Design Type: Modular planetary gear unit, right-angle (R-series) / in-line (L-series) configuration
  • Output Interface: Flange-mounted (for mixer main shaft connection), compatible with Sicoma MSO/MAO series mixers
  • Input Interface: IEC/NEMA motor adapter or solid input shaft (for hydraulic motor connection)
  • Output Shaft Options: Solid keyed shaft, splined shaft, or hollow shaft with shrink disc
  • Weight (Typical): ~130–150 kg (287–331 lb)
  • Lubrication: Oil bath lubrication, standard oil volume ~12–15 L
