SNAKE

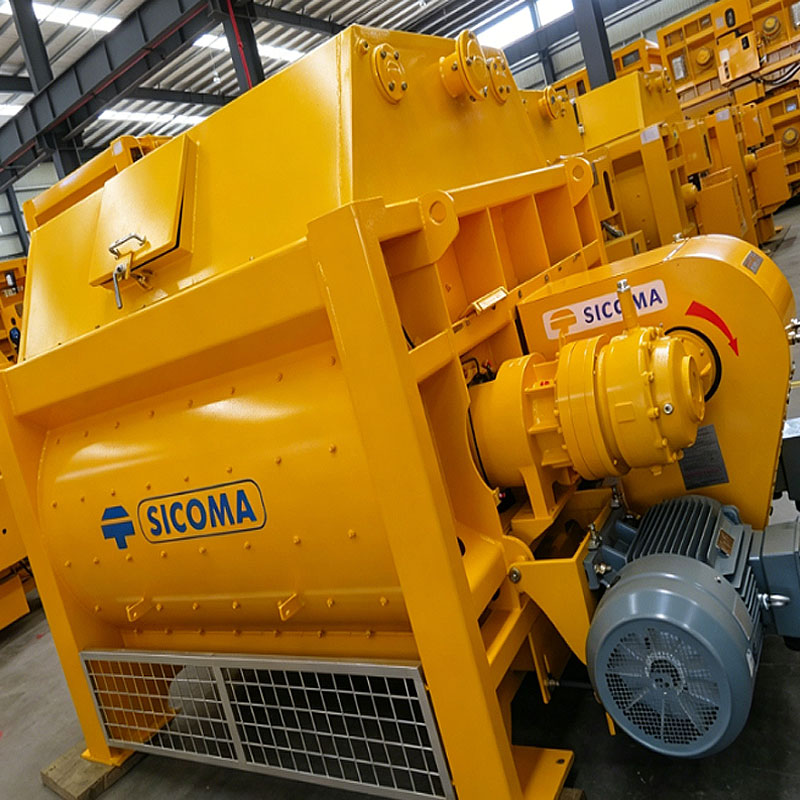

MSO Mini Series Twin Shaft Compulsory Concrete Mixer

Product features

MSO 500/1000/1500 SICOMA TWIN SHAFT MIXER Special Features

  • Equipped with multi stages shaft seals.
  • Equipped with manual lubbification pump.
  • Watering curtain at top cover to ensure fast and thorough mixing.
  • Optional DC24V automatic centralized lubrication pump dedicated concrete mixer.
  • Optional weighting system.
  • Optional capacity range 0.5m³ /1.0m³ /1.5m³
Inquiry or Consult
图1

SNAKE Belt Conveyor Driving Pulley Complies With CEMA and ISO standard

SNAKE produce driving pulley by welding robot, keep full welding, low runout, high shaft concentricity and reducing eccentric force

  • 1
  • 2
  • 3
GET MORE INFORMATION

 SNAKE

Product parameters

Parameter

Unit

MSO750/500 (0.5m³)

MSO1500/1000 (1.0m³)

MSO2250/1500 (1.5m³)

Dry filling capacity

L

750

1500

2250

compacted Yield

L

500

1000

1500

Mixing blades

pcs

14

12

14

Mixing motor & power

KW

2×11

2×22

2×30

weight

T

3.6

5.05

5.62


图纸

 SNAKE

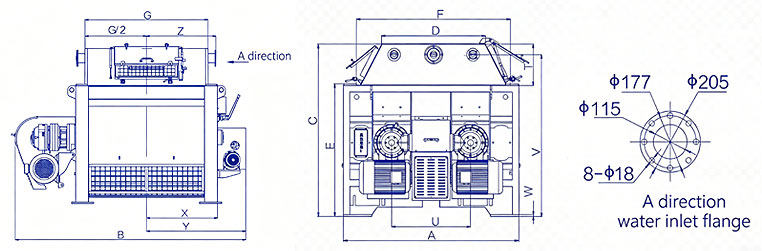

Model parameters

Serial No.

MSO750/500

MSO1500/1000

MSO2250/1500

A

1600

2000

2000

B

2396

2921

3147

C

1703

1955

1955

D

1028

1176

1176

E

1420

1505

1505

F

1330

1750

1750

G

1300

1554

1780

H

1040

1440

1440

I

950

1350

1350

J

235

235

235

K

235

235

235

L

285

285

285

M

1145

1334

1560

N

325

325

325

O

1030

854

1080

P

210

220

220

Q

580

811

811

R

1141

1332

1558

S

1195

1384

1610

T

303

470

470

U

640

900

900

V

1631.5

1835

1835

W

20

20

20

X

795

897

1010

Y

1100

1257

1370

Z

771

877

990
