Bonfiglioli 309 Series Planetary Gear Reducer

The best replacement of Bonfiglioli 309 gearbox.

This Planetary Gearboxe is for Twin Shaft Concrete Mixers of 1to 2cbm.

 SNAKE

Bonfiglioli 309 Series Planetary Gear Reducer

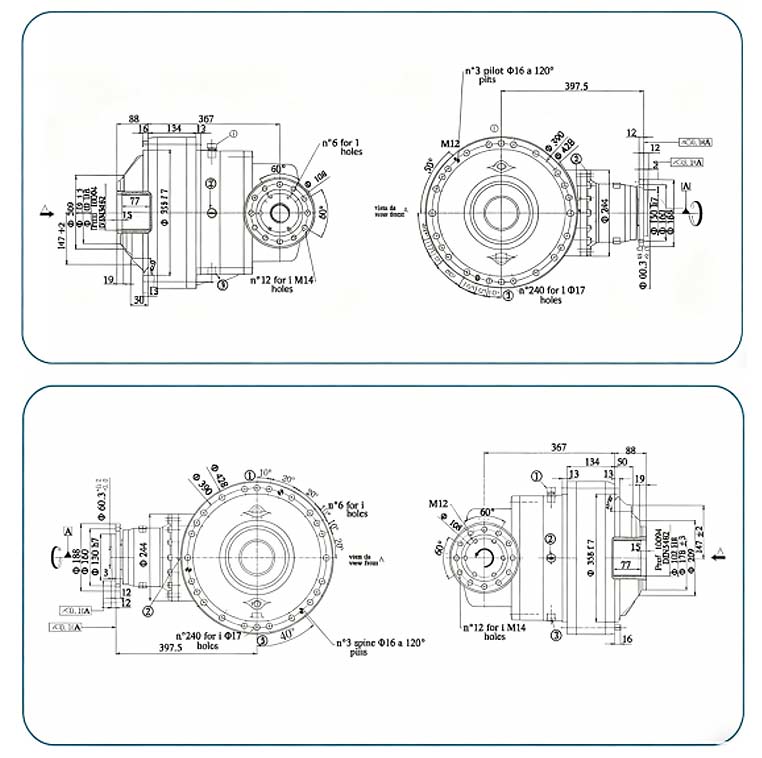

Technical Specifications

Bonfiglioli 310 (300 Series) Core Technical Parameters

Parameter

Value

Series

300 Series Planetary Gearbox

Model

310 (including 310M/310L variants)

Nominal Output Torque (T₂N)

25,000 Nm

Max. Input Speed (n₁max)

2,000 rpm

Ratio Range (i)

3.4 ~ 5,000 (multi-stage combinations)

Max. Allowable Input Power

Up to 1050 kW

Weight (Typical)

~230–250 kg (concrete mixer version)


Inquiry or Consult

SNAKE Planetary Gearbox complies with EU standard

SNAKE produced gearbox by our own heat treatment furnace.All of our machines are from Germany to ensure the most tiny tolerance.

  • 中1
  • 中2
  • 中3
GET MORE INFORMATION

 SNAKE

Key Performance Features

Performance

Design Type:

  • Modular planetary gear train, available in inline (coaxial) or right-angle (bevel gear) configurations for concrete mixer applications.

Load Capacity:

  • Designed for severe duty with high shock loads and frequent start-stop cycles (typical for concrete mixers).

Standards Compliance:

  • ISO 6336 (Gear calculation method B)
  • ISO 281 (Bearing life calculation)
  • DIN 743 (Shaft design)

Lubrication:

  • Oil bath lubrication, with oil capacity optimized for heat dissipation in continuous operation.
055c51cd-f935-48ea-8950-180855e2b557

 SNAKE

Application & Mounting

Typical Applications:

  • 2–3 m³ twin-shaft forced concrete mixers
  • Heavy-duty construction machinery (e.g., rotary drilling rigs)

Mounting Options:

  • Output: Flange mount (standard for mixer connection)
  • Input: Compatible with hydraulic motors or electric motors (IEC/NEMA interfaces)

Protection:

  • Industrial-grade sealing against dust and moisture, suitable for harsh construction site environments.

Compare 309 with 310

Product Comparison

Parameter

Bonfiglioli 309

Bonfiglioli 310

Nominal Output Torque

18,500 Nm

25,000 Nm

Max. Input Speed

2,500 rpm

2,000 rpm

Typical Application

1.5–2 m³ mixers

2–3 m³ mixers

Weight

~200 kg

~230–250 kg
