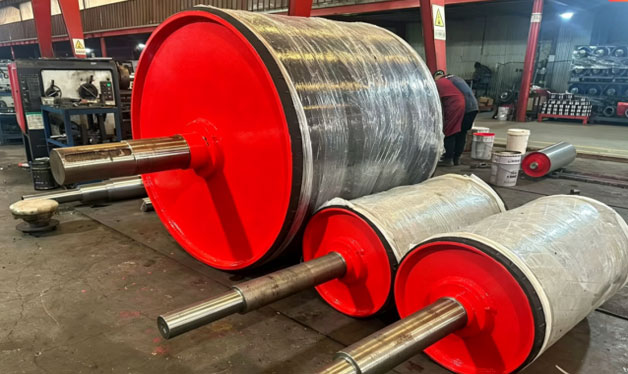

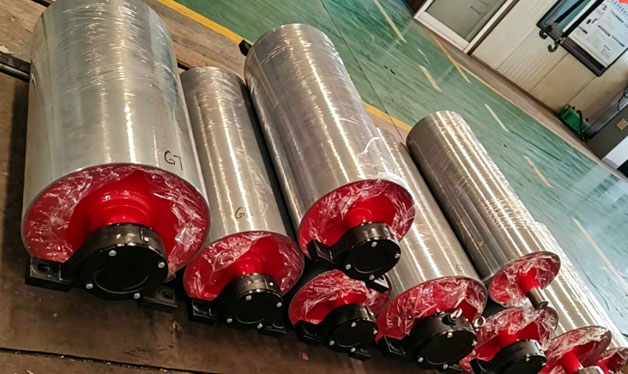

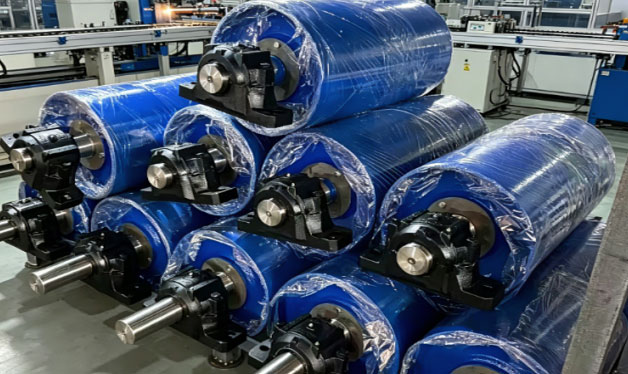

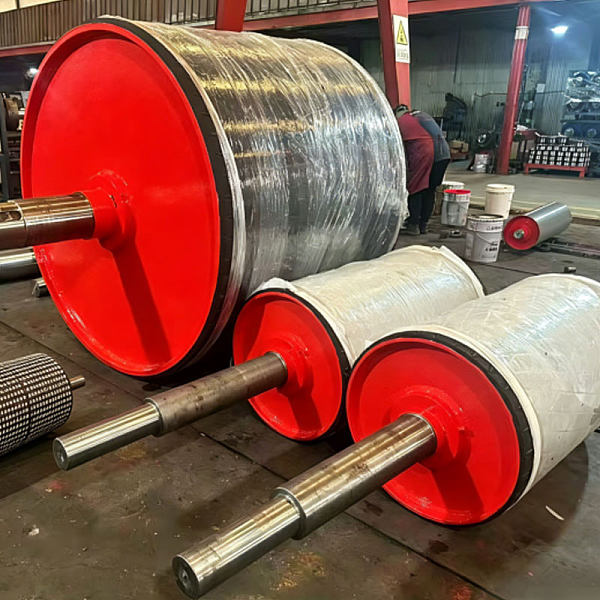

DTll Driving Pulley

SNAKE Belt Conveyor DTII Driving Pulley is with smooth running performance, is manufactured from C45 steel, controlled with radial runout below 0.01mm, adopts full penetration welding

Home > Products > CONVEYOR SYSTEM PARTS > DTll Driving Pulley

一 SNAKE

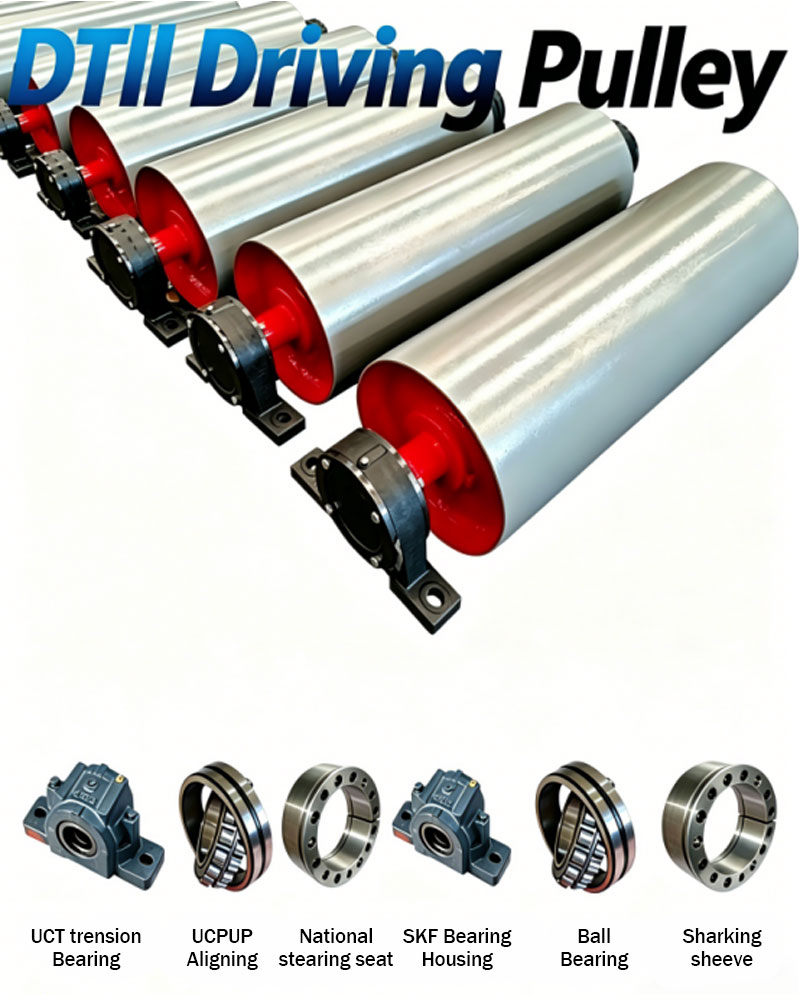

DTll Driving Pulley

Product features

SNAKE brand Belt Conveyor DTII Driving Pulley Features

produced by seamless steel pipe, The whole cutting and welding is finished by automatic machine, and weld the pulley sleeve & disc by using the positioner.
Using a large horizontal lathe to machine the outer circle, ensuring the pulley features uniform wall thickness and low runout.
Adopt C45 round steel and shaft sleeve to machine the integral shaft, ensuring high shaft concentricity and reducing eccentric force on the shaft.
high-quality hot-assembled bearings and bearing blocks with a built-in installation tool. The bearing can be fitted easily without hammering, to prevent damage.
We perform stress relief treatment when the pulley load exceeds 80KN, and conduct static balance inspection when the belt speed is over 2.5m/s.

Inquiry or Consult

SNAKE Belt Conveyor Driving Pulley Complies With CEMA and ISO standard

SNAKE produce driving pulley by welding robot, keep full welding, low runout, high shaft concentricity and reducing eccentric force

GET MORE INFORMATION

一 SNAKE

Snake brand belt conveyor DTII drive wheel parameters

B	D	A	L	L1	K	M	N	Q	P	H	h	h1	d	b	ds	bearing type	Smooth weight	figure number	Rubber surface	figure number
500	500	850	600	505.5	115	70	—	280	340	100	33	60	55	16	27	1312	155	TD1A13	166	TD1A23
650	500	1000	750	588.5	135	90	—	350	410	120	33	76	70	20	27	1316	237	TD2A13	250	TD2A23
650	630	1000	750	588.5	135	90	—	350	410	120	33	76	70	20	27	1316	267	TD2A14	283	TD2A24
800	500	1300	950	738.5	135	90	—	350	410	120	33	76	70	20	27	1316	297	TD3A13	313	TD3A23
800	630	1300	950	771	175	130	80	380	460	140	33	97	90	25	27	3520	402	TD3A14	423	TD3A24
800	800	1300	950	771	175	130	80	380	460	140	33	97	90	25	27	3520	473	TD3A15	501	TD3A25
1000	630	1500	1150	871	175	130	80	380	460	140	33	97	90	25	34	3520	442	TD4A14	467	TD4A24
1000	800	1500	1150	900	215	160	90	440	530	160	53	119	110	32	34	3524	682	TD4A15	715	TD4A25
1000	1000	1500	1150	930	255	170	100	480	570	180	53	140	130	36	34	3528	—	—	963	TD4A26
1200	630	1750	1400	1025	215	160	90	440	530	160	53	119	110	32	34	3524	660	TD5A14	691	TD5A24
1200	800	1750	1400	1025	215	160	90	440	530	160	53	119	110	32	34	3524	759	TD5A15	798	TD5A25
1200	1000	1750	1400	1055	255	170	100	480	570	180	53	140	130	36	34	3528	—	—	1072	TD5A26
1200	1250	1750	1400	1065	275	180	110	540	630	200	63	161	150	40	34	3532	—	—	1642	TD5A27
1400	800	2000	1600	1150	215	160	90	440	530	160	53	119	110	32	40	3524	898	TD6A15	942	TD6A25
1400	1000	2000	1600	1190	275	180	110	540	630	200	63	161	150	40	40	3532	—	—	1453	TD6A26
1400	1250	2000	1600	1190	275	180	110	540	630	200	63	161	150	40	40	3532	—	—	1770	TD6A27
1400	1400	2000	1600	1200	335	200	120	590	680	220	63	181	170	40	40	3536	—	—	2203	TD6A28

一 SNAKE

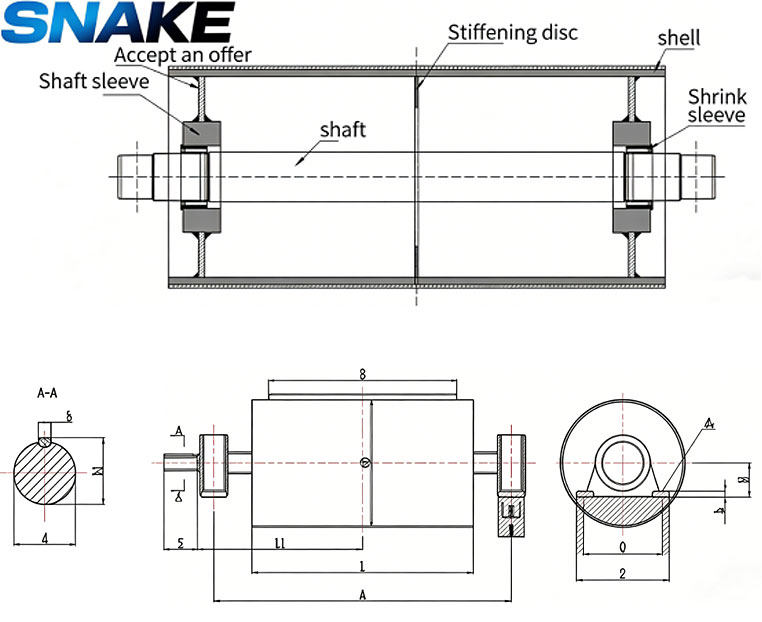

Product drawing
