TK Belt Conveyor Idler
一 SNAKE
TK BELT CONVEYOR IDLER
Product Introduction
SNAKE TK Conveyor Idler Is An Important Component Of The Conveyor Belt. Famous For Its Smooth Rotation, Fully Sealed, Dust Proof And Waterproof Structure. It Has High Precision, Low Rotational Resistance, Low Operating Noise, And A Long Service Life Of More Than Up To 80,000 Hours.We Have Got 3 Patents For This TK Conveyor Idler.
DTII and DT75 Idler comparison
SNAKE Planetary Gearbox complies with EU standard
SNAKE produce conveyor idler by robot, which is full welding, bearing use Sweden brand. Runout is within 0.01.
一 SNAKE

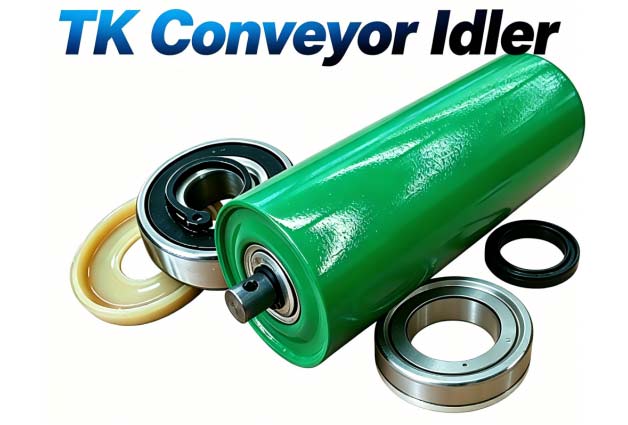

SNAKE TK Conveyor roller Features
Robust Structure & Durability
- Tube Material: EN1002 High-strength carbon steel
- Shaft Material: C45 steel, heat-treated for high tensile strength and deformation resistance.
- Welding: Robot full welding
- Bearing Type: Single/double-row deep groove ball bearings (2RZ/2Z, C3 clearance) for low friction and high load capacity.
- Precision Tolerance: Inner diameter tolerance 0~-0.01mm, ensuring smooth rotation and minimal vibration.
- Lubrication: Lithium-based grease with rust inhibitors, long-lasting lubrication for 60,000+to 80,000 hours of stable operation.
Advanced Sealing Performance
- Multi-Stage Labyrinth Seal: Combined with inner grease-retaining seal and outer rubbing flinger, effectively blocks dust, water, and debris.
- Corrosion Resistance: Dustproof, waterproof, acid/alkali-resistant, suitable for harsh environments (mining, ports, cement plants).
Low Maintenance & High Efficiency
- Minimal Upkeep: Premium sealing and lubrication reduce maintenance frequency and downtime.
- Smooth Operation: High-precision components ensure low noise, low vibration, and energy efficiency.
- Easy Installation: Standardized dimensions (diameter 50–219mm, length 190–3400mm) for quick replacement. OEM is welcomed.

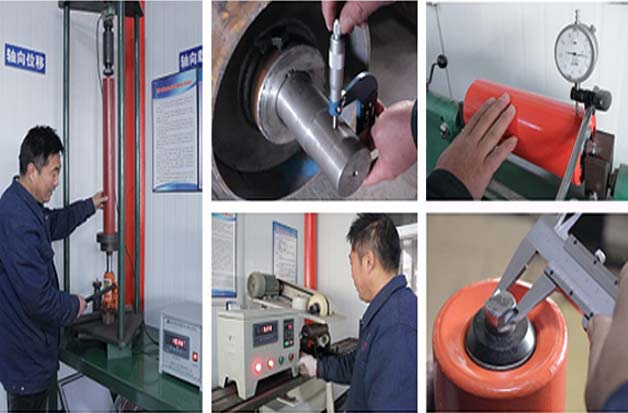

Strict test standards:
- dimension: comply with EN1002 European standards
- Sealing, runout, balance: align ISO 1940 + EURO equivalent tolerance
- Export to European countries and Australia the most
