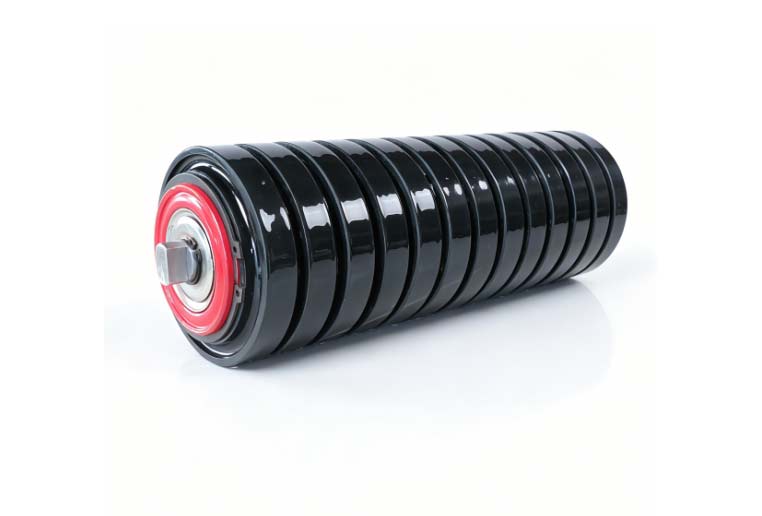

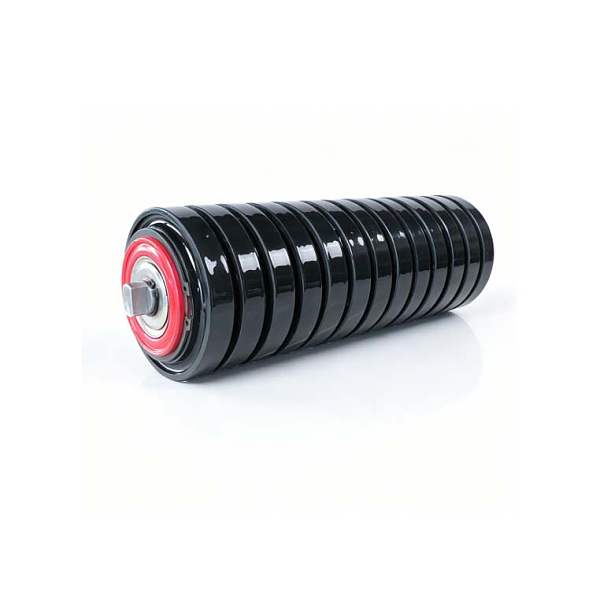

Buffer Idler

SNAKE Buffer Idler is an important component of the conveyor belt. We focus on safety compliance, environmental protection, durability, and operational efficiency. Our buffer idler comply with (EU) 2023/1230 and US safety standards, we got ROHS certificate which is environmental friendly buffer roller. Good sealing, thickwall, firm shaft and perfect runout which can ensure the service life.

 SNAKE

Buffer Idler Technical Parameters

Product Introduction

Tube Material

High-strength seamless welded steel

Tube Thickness

4-8mm (customization)

Shaft Material

High-precision cold-drawn round steel

Shaft Diameter

20-50mm (customization)

Bearing Type

Heavy-duty double-sealed deep groove ball bearing (optional KAC3 mining bearing)

Sealing Structure

Multi-layer labyrinth seal (dust proof, waterproof, anti-corrosion, anti-static)

Buffer Rubber

High-elastic wear-resistant rubber (anti-aging, anti-cracking)

Rotation Resistance

≤2.0N

Operating Noise

≤50dB

Service Life

≥50000 hours (under normal working conditions)

Working Temperature

-25℃ ~ 40℃

Applicable Belt Width

500-2000mm (customizable)


Inquiry or Consult
02

SNAKE Planetary Gearbox complies with EU standard

SNAKE produced gearbox by our own heat treatment furnace.All of our machines are from Germany to ensure the most tiny tolerance.

  • 1-1
  • 1-3
  • 1-2
GET MORE INFORMATION

 SNAKE

SNAKE Buffer Idler Core Features

Characteristics

1. Elastic shock absorption Equipped with rubber buffer rings, effectively absorb impact from falling bulk materials, reduce belt vibration and damage.

2. Belt protection Relieve strong impact stress on the conveyor belt, prevent tearing, abrasion and premature aging, extend belt service life.

3. Heavy load & anti-wear High-strength pipe body, thickened shaft and heavy-duty sealed bearings; excellent compression resistance and structural stability for heavy material conveying.

4. Excellent sealing performance Multi-layer labyrinth waterproof & dustproof seal structure, anti-corrosion, anti-static, mud and coal dust resistant, adapt to harsh wet and dusty working conditions.

5. Low operation resistance High-precision cold-drawn shaft and high-quality bearings, low rotational resistance, low noise, energy-saving operation.

6. Durable buffer rubber ring High-elastic wear-resistant rubber material, anti-aging, anti-cracking, long service life, not easy to fall off.

7. Wide applicability Mainly installed at the material feeding & blanking point; suitable for mines, coal washing plants, cement plants, ports, metallurgy and other heavy-duty conveying scenes.
